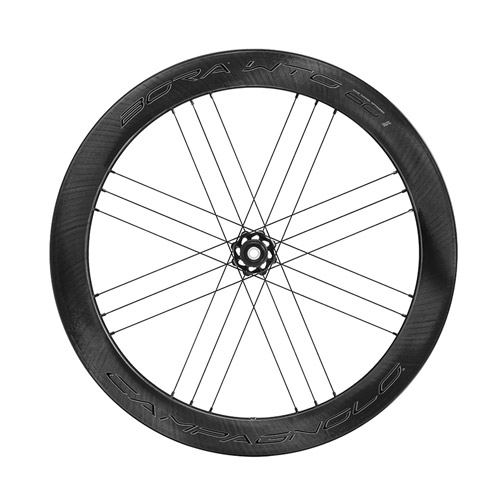

60 mm: the essence of aerodynamics.

• The design of the rim enables maximum aerodynamic penetration: at wind angles between 10° and 20°, a situation that accounts for 80% of time on the saddle, this wheel is unequalled when it comes to overcoming drag.
• The streamlined design of the central part of the hub and the special design of the flanges decrease the frontal area of the component reducing airflow turbulence.
• The 24-spoke pattern, along with their elliptical cross section, results in a far superior drag reduction.

Fast and…fluid

• The well-known USB cup-and-cone bearing system guarantees 50% greater smoothness than standard bearings.
• The 2-Way Fit profile allows you to fit either a clincher tyre or to opt for a tubeless tyre and benefit from the lowest rolling resistance
• The 19 mm inner width enables you to fit 23, 25 and 28 mm tyres, with perfect pairing of the rim-tyre system

Choose aero… but make it Campagnolo

• The 60 mm profile allows the transfer of all the benefits of aerodynamic optimisation that can’t be achieved with lower profiles.
• The wheel structure enables minimal energy dissipation, transferring all the energy produced by the cyclist to the asphalt.
• A 60 mm profile with a wheelset weight of 1,590 g makes it the perfect ally to win sprint finishes, circuit races, time trials and cycling sections in triathlons.

Specifications:

SPOKES

• 24 steel elliptical-aero cross section spokes in the front, G3 pattern
• 24 steel elliptical-aero cross section spokes in the rear, G3 pattern

VERSIONS AND WEIGHTS

• Campagnolo body (optional)_
• HG11 body
• XDR body (optional)
• 1.590 g

COMPATIBILITY

• Campagnolo 10/11/12s cassette
• Shimano / SRAM 10/11s cassette
• SRAM 12s cassette

HUB

• Black aluminium monolithic hub
• Hub O.L.D.: 100 mm in the front, 142 mm in the rear
• Axle material: aluminium
• USB cup-and-cone bearing system with ceramic balls

RIM

• Profile height: 60 mm
• Rim material: carbon
• Rim cross section (H x W): 60/26,1 mm
• Internal width: 19 mm
• Water transfer graphics

TIRES

• Clincher tyres
• Tubeless tyres

ASSEMBLY

• The Bora™ WTO™ 60 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo® technician and is 100% checked using electronic instrumentation. This procedure ensures that every single
• Campagnolo® wheel offers maximum performance and reliability

COMES WITH

• 44 mm tubeless valve
• 40 mm valve extender
• Bushing to reduce the size of the valve hole
• 2 levers in composite material for tyre removal – User manual
